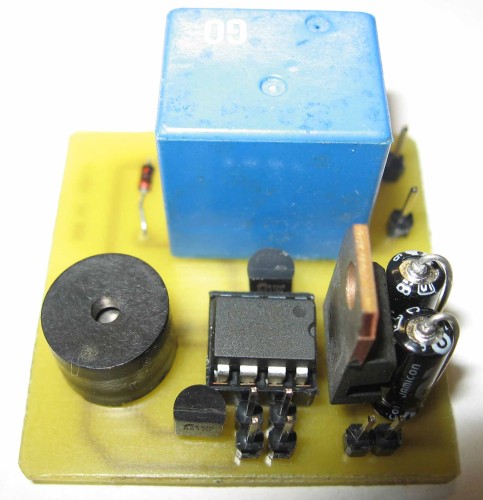

HIS IS TIMER SWITCH CIRCUIT WITH 12F629 PIC MICRO CONTROLLER. HAVE TWO TIMES PRESET 3 MINUTES AND 12 MINUTES WITH TWO BUTTONS. WHEN PUSH THE BUTTON FOR ONE TIME THE BUZZER GIVE ONE BEEP AND THE RELAY ON WHEN THE TIME IS END THE RELAY TURN OFF AND THE BUZZER GIVE 3 BEEPS. THE RELAY CONTACT'S IS 10A. HAVE REGULATOR AND WANT POWER 9-15VOLT 100mA. IS VERY STABLE, DIMENSIONS : 4cm X 4cm IF YOU WANT OTHER TIMES PLEASE CONTACT ME. IF YOU WANT ANOTHER PROJECT LIKE THIS PLEASE CONTACT ME.
